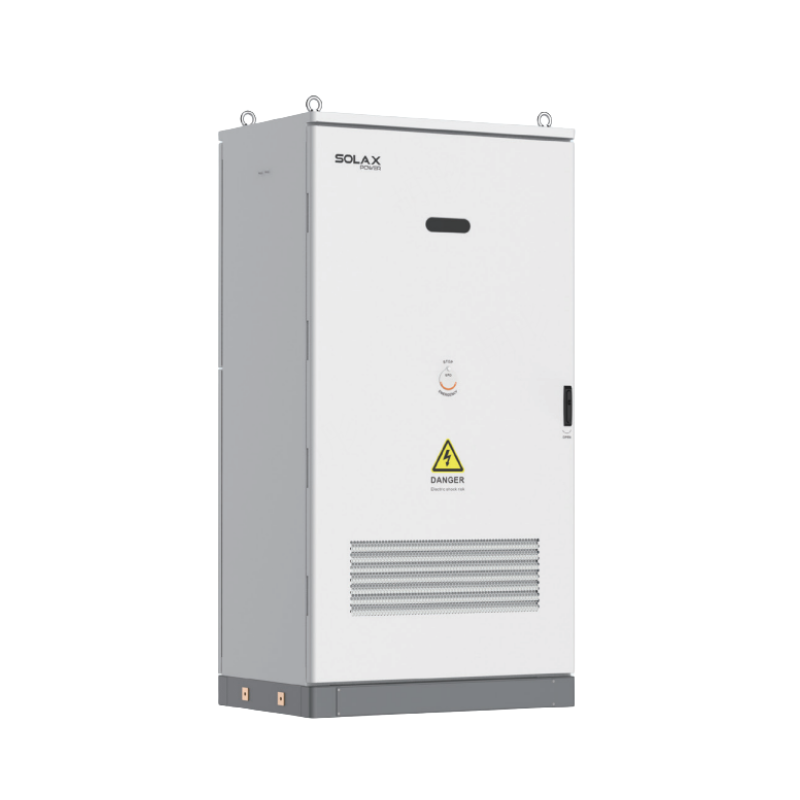

AC Switching Cabinet

  • Nexus Zero

It is designed for intelligent energy routing in solar-storage and microgrid systems. With integrated EMS 1000 PRO control, it enables seamless switching between grid-connected and off-grid operation while coordinating PV, ESS, and load management for optimized energy performance.

Product Advantage

The SolaX AC Switching Cabinet supports a maximum switching power of up to 1.25 MW and stable operation from -30°C to 55°C. The cabinet also supports diesel generator connection and reliable performance at altitudes up to 3,000 meters without derating.

Contact Us

Intelligent Operation

  • Seamless switching between grid and off-grid

  • EMS 1000 PRO Inside: Seamlessly integrated, intelligent  management of PV, ESS, and loads for optimal energy  performance

  • Supports a maximum switching power of up to 1.25MW

Safer and Reliable

  • Load-friendly design, protects equipment from unstable  grid damage

  • Supports Type II surge protection

  • Supports water ingress alerts, over-temperature  warnings, and door lock status feedback

Environmental Adaptability

  • IP55 protection rating, suitable for both indoor and  outdoor use

  • Supports operation in environments ranging from -30°C  to 55°C

  • Reliable operation at 3000 meters without derating

  • C5-M corrosion protection standards for reliable  performance in the harshest environments

Versatile Applications

  • Supports connection to diesel generators to ensure  stable energy supply

  • Intelligent operation, supports multiple operation modes

  • Supports building on-grid/off-grid, solar-storage microgrid, and solar-storage-diesel microgrid solutions

Product Parameters

  • ZERO-125
  • ZERO-250
  • ZERO-500
  • ZERO-750
  • ZERO-1250
  • ZERO-125
    • SYSTEM PARAMETERS
      Rated AC voltage
      		3 / N / PE ,230 / 400 V 3 / N / PE ,220 / 380 V
      Rated AC current@230V
      		181.2 A
      Rated AC current@220V
      		189.4 A
      Ingress protection
      		IP55
      Dimension (W × H × D)
      		900 x 1600 x 800 mm
      Weight (kg)
      		300 kg



  • ZERO-250
    • SYSTEM PARAMETERS
      Rated AC voltage
      		3 / N / PE ,230 / 400 V 3 / N / PE ,220 / 380 V
      Rated AC current@230V
      		362.3 A
      Rated AC current@220V
      		378.8 A
      Ingress protection
      		IP55
      Dimension (W × H × D)
      		900 x 1600 x 800 mm
      Weight (kg)
      		330 kg



  • ZERO-500
    • SYSTEM PARAMETERS
      Rated AC voltage
      		3 / N / PE ,230 / 400 V 3 / N / PE ,220 / 380 V
      Rated AC current@230V
      		724.6 A
      Rated AC current@220V
      		757.6 A
      Ingress protection
      		IP55
      Dimension (W × H × D)
      		1200 x 2300 x 800 mm
      Weight (kg)
      		660 kg



  • ZERO-750
    • SYSTEM PARAMETERS
      Rated AC voltage
      		3 / N / PE ,230 / 400 V 3 / N / PE ,220 / 380 V
      Rated AC current@230V
      		1087 A
      Rated AC current@220V
      		1136 A
      Ingress protection
      		IP55
      Dimension (W × H × D)
      		1200 x 2300 x 800 mm
      Weight (kg)
      		730 kg



  • ZERO-1250
    • SYSTEM PARAMETERS
      Rated AC voltage
      		3 / N / PE ,230 / 400 V 3 / N / PE ,220 / 380 V
      Rated AC current@230V
      		1811.6 A
      Rated AC current@220V
      		1893.9 A
      Ingress protection
      		IP55
      Dimension (W × H × D)
      		1900 x 2300 x 1200 mm
      Weight (kg)
      		1500 kg
