Residential ESS

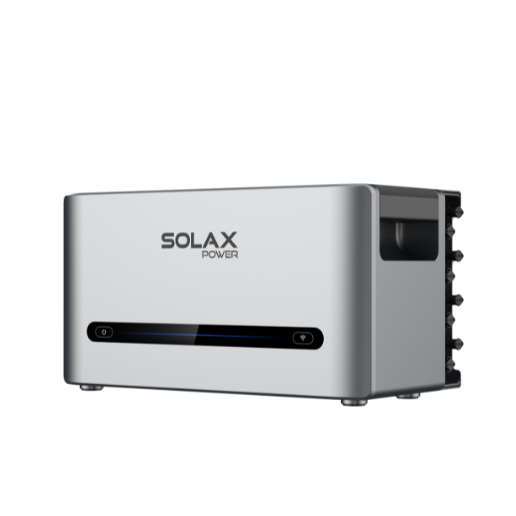

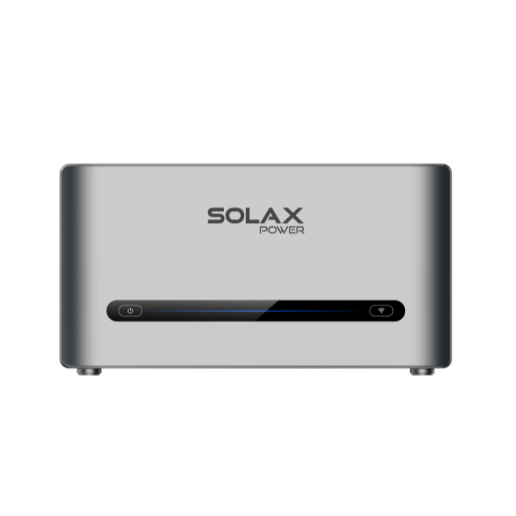

X-MS 2000

All-In-One Balcony ESS

This all-in-one balcony energy storage system offers a powerful, plug-and-play solution designed for micro home energy solution. With up to 2400W solar input across 4 MPPTs and scalable battery capacity expandable to 11.98kWh, it combines ultra-fast installation, reliable off-grid capability, and intelligent energy management.

Data Download

Product Advantage

Power & Performance

Up to 2400W solar input with 4 MPPTs
Max charging power 3400W, 1000W bidirectional AC power
UPS-level switchover time <10ms
Long-lasting power with 6000 charge cycles

System Design & Installation

All-in-one compact design, plug-and-play installation
DIY expansion to 11.98 kWh capacity

Environmental Resilience

IP65 ingress protection
Built-in battery heating function, reliable performance in extreme temperature (-20°C)

Efficiency & Sustainability

Zero waste with self-consumption
Support TOU mode to maximize family benefits

Product Parameters

X-MS 2000

X-MS 2000
- PV INPUT

  Max. PV input power
  2400 W
  Max. PV input voltage
  60 V
  Operation voltage range
  16 ~ 60 V
  No. of MPP trackers
  4
- AC ON-GRID

  Rated Input / output apparent power
  800 VA
  * It can be customized by using the Solax App and can be adjusted up to 1000 VA
  Rated AC output voltage
  220 V / 230 V / 240 V
- BATTERY DATA

  Battery type
  LFP
  Max. discharging current
  100 A
- GENERAL

  Ingress protection IP65
  Dimensions (W x H x D)
  460 x 240 x 240 mm
  Net Weight
  24 kg
- STANDARD

  Safety
  IEC62109-1 / -2
  EMC IEC62619, UN38.3, IEC / EN 61000-6-1, IEC / EN 61000-6-2, IEC / EN 61000-6-3, IEC / EN 61000-6-4，CE-RED
