C&I EV Charger

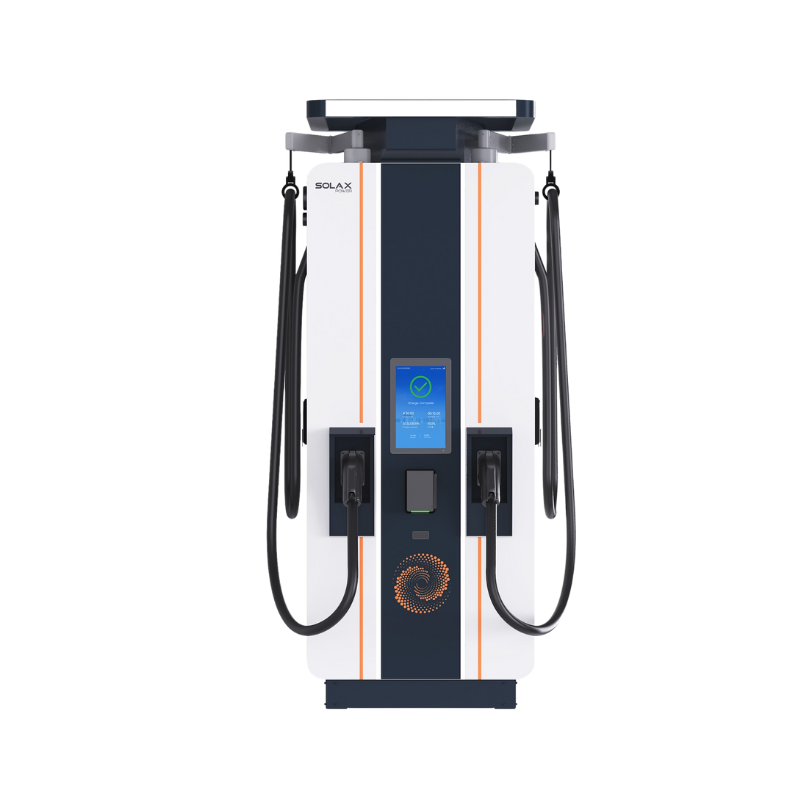

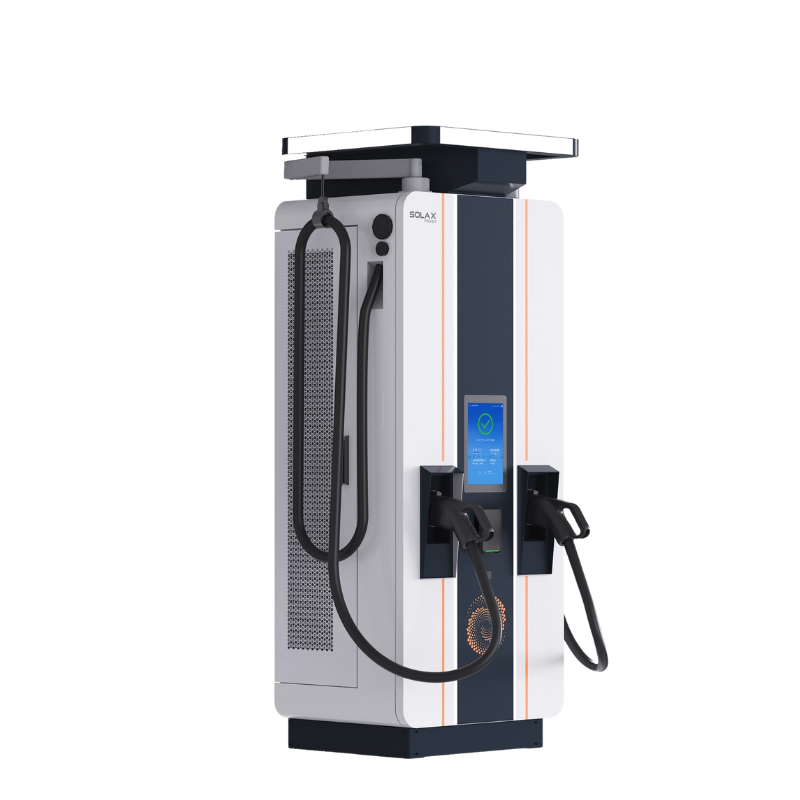

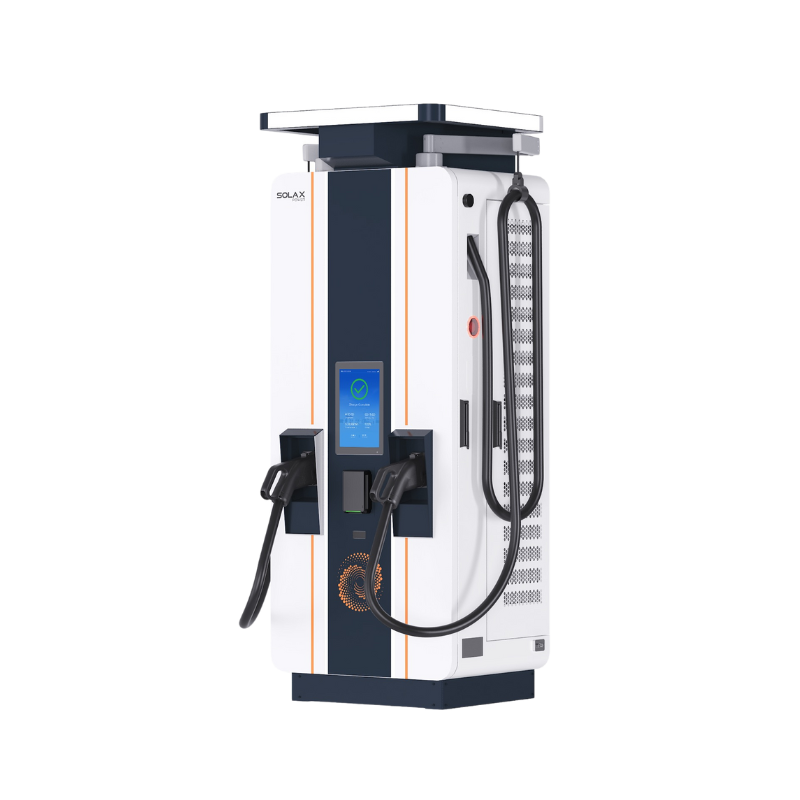

Fast DC Charger

  • 120kW/180kW/240kW/300kW/360kW

This fast DC charger features an all-in-one structure with flexible installation options, making ideal for a wide range of applications. The 12.1-inch high-contrast HMl display enhances user experience, and ensures seamless integration and easy operation.

Product Advantage

By combining dynamic EMS power control with a full PV-ESS-EV solution, this charger inteligently balances energy usage, minimizes peak load impact, and adapts to real-time EV demand.

Supporting a wide voltage range (200-1000V), it maximizes green energy use, and reduces energy costs-making it the ideal choice for sustainable charging infrastructures.


Contact Us

Flexible Adaptability

  • All-in-one design, easy and quick installation, compact  and lightweight structure can be flexibly installed in  various positions.

  • The voltage range of 200-1000V is suitable for all  current mainstream charging scenarios.

High Efficiency

  • Intelligently distribute charging power to meet the charging needs of different EVs.

  • Support EMS intelligent dynamic power control, and form  an integrated PV-ESS-EV Solution.

Assured Safety

  • Safe and reliable, with multiple fault protection.

  • Equipped with cable management system to enhance  user experience.

Intelligent Design

  • Support OCPP1.6J protocol to access third-party  operation platform.

  • Support multiple network communication (Ethernet / Wi-Fi / 4G).

  • Integrated smart HMI: 12.1-inch high-contrast LCD.

Product Parameters

  • FDC-120-EU
  • FDC-180-EU
  • FDC-240-EU
  • FDC-300-EU
  • FDC-360-EU
  • FDC-120-EU
    • AC NOMINAL INPUT
      Voltage400V ± 15%
      Earthing systemTN-S / TT


    • DC NOMINAL OUTPUT
      Power120 kW


    • INTERFACE
      Communication InterfaceEthernet / 4G / Wi-Fi


    • GENERAL
      Charge connectorDual（CCS2 + CCS2）
      Enclosure ratings

      IP54

      Cooling methodAir-cooling
      Net weight400 kg
      Dimensions (W x H x D)750 × 2000 × 600 mm


  • FDC-180-EU
    • AC NOMINAL INPUT
      Voltage400V ± 15%
      Earthing systemTN-S / TT


    • DC NOMINAL OUTPUT
      Power180 kW


    • INTERFACE
      Communication InterfaceEthernet / 4G / Wi-Fi


    • GENERAL
      Charge connectorDual（CCS2 + CCS2）
      Enclosure ratings

      IP54

      Cooling methodAir-cooling
      Net weight480 kg
      Dimensions (W x H x D)750 × 2000 × 600 mm


  • FDC-240-EU
    • AC NOMINAL INPUT
      Voltage400V ± 15%
      Earthing systemTN-S / TT


    • DC NOMINAL OUTPUT
      Power240 kW


    • INTERFACE
      Communication InterfaceEthernet / 4G / Wi-Fi


    • GENERAL
      Charge connectorDual（CCS2 + CCS2）
      Enclosure ratings

      IP54

      Cooling methodAir-cooling
      Net weight530 kg
      Dimensions (W x H x D)830 × 2050 × 740 mm


  • FDC-300-EU
    • AC NOMINAL INPUT
      Voltage400V ± 15%
      Earthing systemTN-S / TT


    • DC NOMINAL OUTPUT
      Power300 kW


    • INTERFACE
      Communication InterfaceEthernet / 4G / Wi-Fi


    • GENERAL
      Charge connectorDual（CCS2 + CCS2）
      Enclosure ratings

      IP54

      Cooling methodAir-cooling
      Net weight570 kg
      Dimensions (W x H x D)830 × 2050 × 740 mm


  • FDC-360-EU
    • AC NOMINAL INPUT

      Voltage

      400V ± 15%

      Earthing systemTN-S / TT


    • DC NOMINAL OUTPUT
      Power360 kW


    • INTERFACE
      Communication InterfaceEthernet / 4G / Wi-Fi


    • GENERAL
      Charge connectorDual（CCS2 + CCS2）
      Enclosure ratings

      IP54

      Cooling methodAir-cooling
      Net weight610 kg
      Dimensions (W x H x D)830 × 2050 × 740 mm
