Microinverters

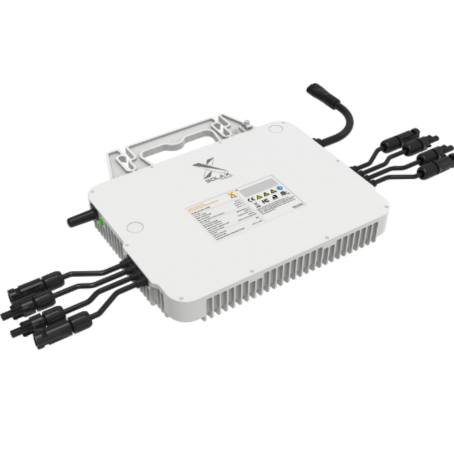

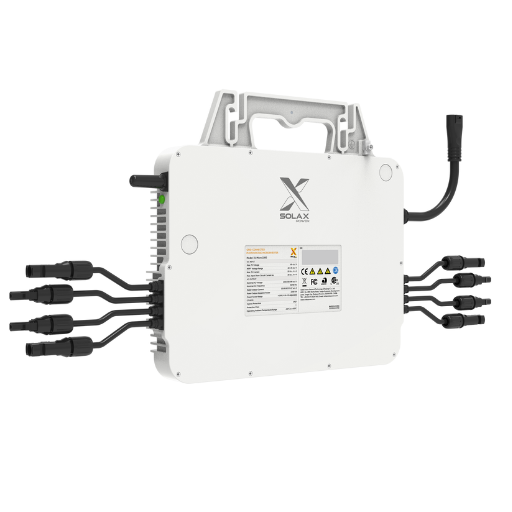

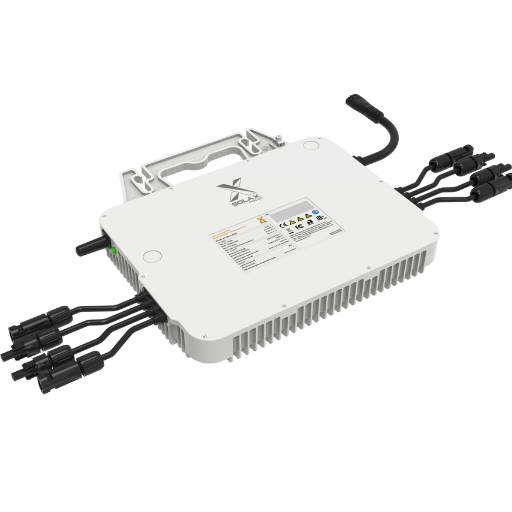

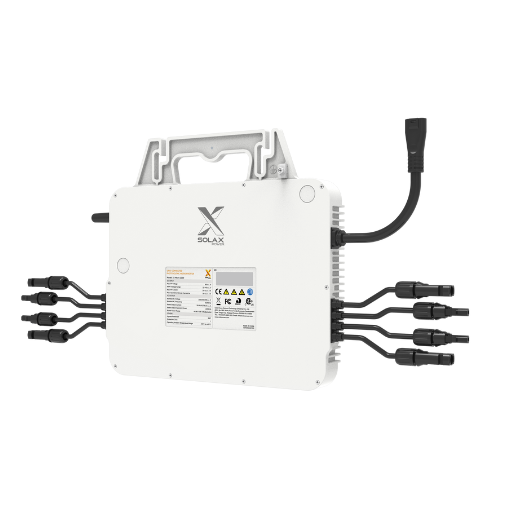

X1-Micro 4 in 1

  • 1300 W / 1500 W / 1600 W / 1800 W 2000 W / 2200 W / 2400 W

The SolaX X1 Micro 4-in-1 integrates 4 MPPT trackers for optimized solar harvesting, supporting high-power modules up to 700W. Enhanced Arc Fault Circuit Interruption (AFCI) ensures safety, while the built-in Wi-Fi/4G module enables real-time monitoring via the SolaX Cloud App. Its plug-and-play design and IP67 rating simplify installation and maintenance in diverse environments.


Product Advantage

With a maximum output of 2400VA and up to 19.5A DC input current, the X1-Micro 4 in 1 microinverter delivers industry-leading energy conversion performance. Its advanced 4 MPPT channels  ensure superior power optimization across multiple panel orientations.

Contact Us

High Efficiency

  • Max. 2400VA output power

  • Max. 19.5A DC input current

  • Four MPPT channels


Assured Safety

  • Rapid Shutdown function

  • Safety protection relay integrated

  • IP67 ingress protection

Intelligent Design

  • Reactive power control

  • Built-in industrial grade WiFi module

  • Easy to install and maintain

Flexible Adaptability

  • Easy and flexible expansion of system capacity

  • upport AC coupling solution

  • Support 1-phase microinverter integration into 3-phase power grid



Product Parameters

  • X1-Micro 1300
  • X1-Micro 1500
  • X1-Micro 1600
  • X1-Micro 1800
  • X1-Micro 2000
  • X1-Micro 2200
  • X1-Micro 2400
  • X1-Micro 1300
    • DC INPUT
      Commonly used module power per input300~ 505+ W
      MPPT voltage range22 ~ 60 V
      Number of MPP. trackers/strings per MPPT4 / 1


    • AC OUTPUT
      Rated AC output power1300 VA


    • EFFICIENCY
      Peak efficiency96.50%
      Nominal MPPT efficiency99.90%


    • GENERAL
      Ingress protection ratingIP67
      Dimensions (W /H / D)322x242x48.5 mm
      Weight6.2 kg
      Cooling ConceptNatural cooling


  • X1-Micro 1500
    • DC INPUT
      Commonly used module power per input320~540+ W
      MPPT voltage range22 ~ 60 V
      Number of MPP. trackers/strings per MPPT4 / 1


    • AC OUTPUT
      Rated AC output power1500 VA


    • EFFICIENCY
      Peak efficiency96.50%
      Nominal MPPT efficiency99.90%


    • GENERAL
      Ingress protection ratingIP67
      Dimensions (W /H / D)322x242x48.5 mm
      Weight6.2 kg
      Cooling ConceptNatural cooling


  • X1-Micro 1600
    • DC INPUT
      Commonly used module power per input360~600+W
      MPPT voltage range22 ~ 60 V
      Number of MPP. trackers/strings per MPPT4 / 1


    • AC OUTPUT
      Rated AC output power1600 VA


    • EFFICIENCY
      Peak efficiency96.50%
      Nominal MPPT efficiency99.90%


    • GENERAL
      Ingress protection ratingIP67
      Dimensions (W /H / D)322x242x48.5 mm
      Weight6.2 kg
      Cooling ConceptNatural cooling


  • X1-Micro 1800
    • DC INPUT
      Commonly used module power per input400~600+W
      MPPT voltage range22 ~ 60 V
      Number of MPP. trackers/strings per MPPT4 / 1


    • AC OUTPUT
      Rated AC output power1800 VA


    • EFFICIENCY
      Peak efficiency96.50%
      Nominal MPPT efficiency99.90%


    • GENERAL
      Ingress protection ratingIP67
      Dimensions (W /H / D)322x242x48.5 mm
      Weight6.2 kg
      Cooling ConceptNatural cooling


  • X1-Micro 2000
    • DC INPUT
      Commonly used module power per input400~670+ W
      MPPT voltage range22 ~ 60 V
      Number of MPP. trackers/strings per MPPT4 / 1


    • AC OUTPUT
      Rated AC output power2000 VA


    • EFFICIENCY
      Peak efficiency96.50%
      Nominal MPPT efficiency99.90%


    • GENERAL
      Ingress protection ratingIP67
      Dimensions (W /H / D)322x242x48.5 mm
      Weight6.2 kg
      Cooling ConceptNatural cooling


  • X1-Micro 2200
    • DC INPUT
      Commonly used module power per input450 ~700+W
      MPPT voltage range22 ~ 60 V
      Number of MPP. trackers/strings per MPPT4 / 1


    • AC OUTPUT
      Rated AC output power2200 VA


    • EFFICIENCY
      Peak efficiency96.50%
      Nominal MPPT efficiency99.90%


    • GENERAL
      Ingress protection ratingIP67
      Dimensions (W /H / D)322x242x48.5 mm
      Weight6.2 kg
      Cooling ConceptNatural cooling


  • X1-Micro 2400
    • DC INPUT
      Commonly used module power per input500~750+W
      MPPT voltage range22 ~ 60 V
      Number of MPP. trackers/strings per MPPT4 / 1


    • AC OUTPUT
      Rated AC output power2400 VA


    • EFFICIENCY
      Peak efficiency96.50%
      Nominal MPPT efficiency99.90%


    • GENERAL
      Ingress protection ratingIP67
      Dimensions (W /H / D)322x242x48.5 mm
      Weight6.2 kg
      Cooling ConceptNatural cooling
