Residential Batteries

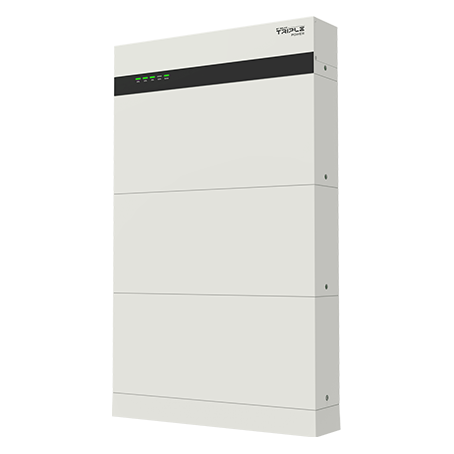

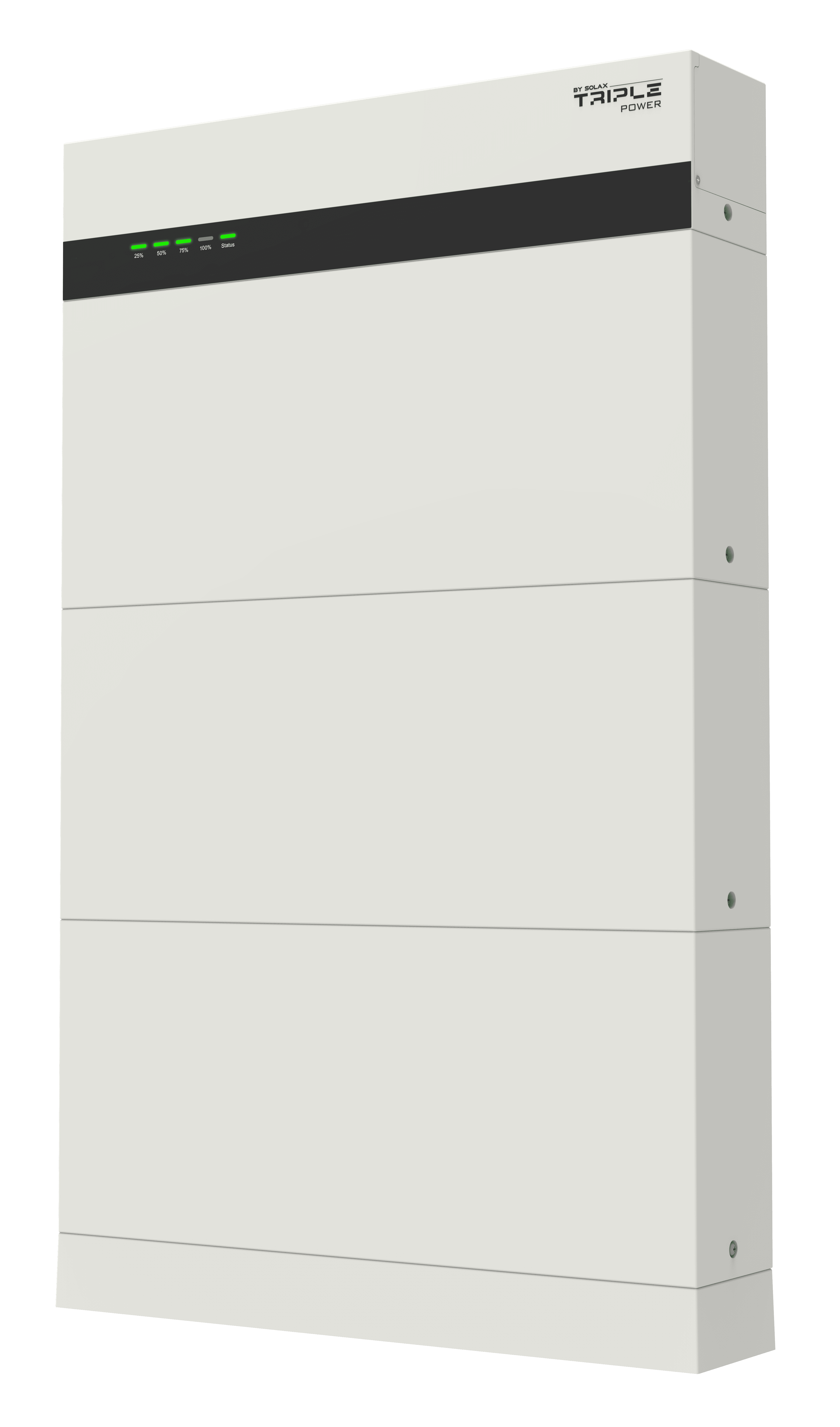

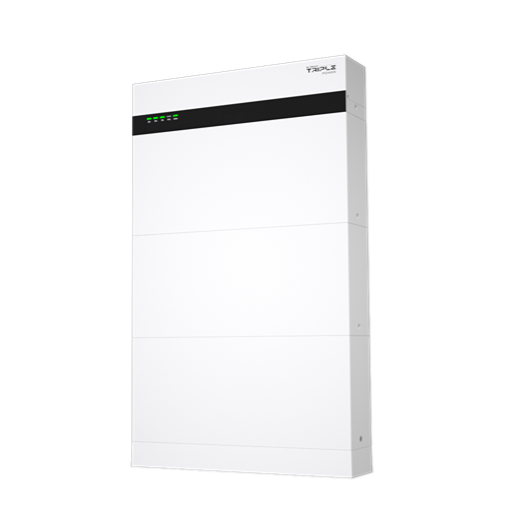

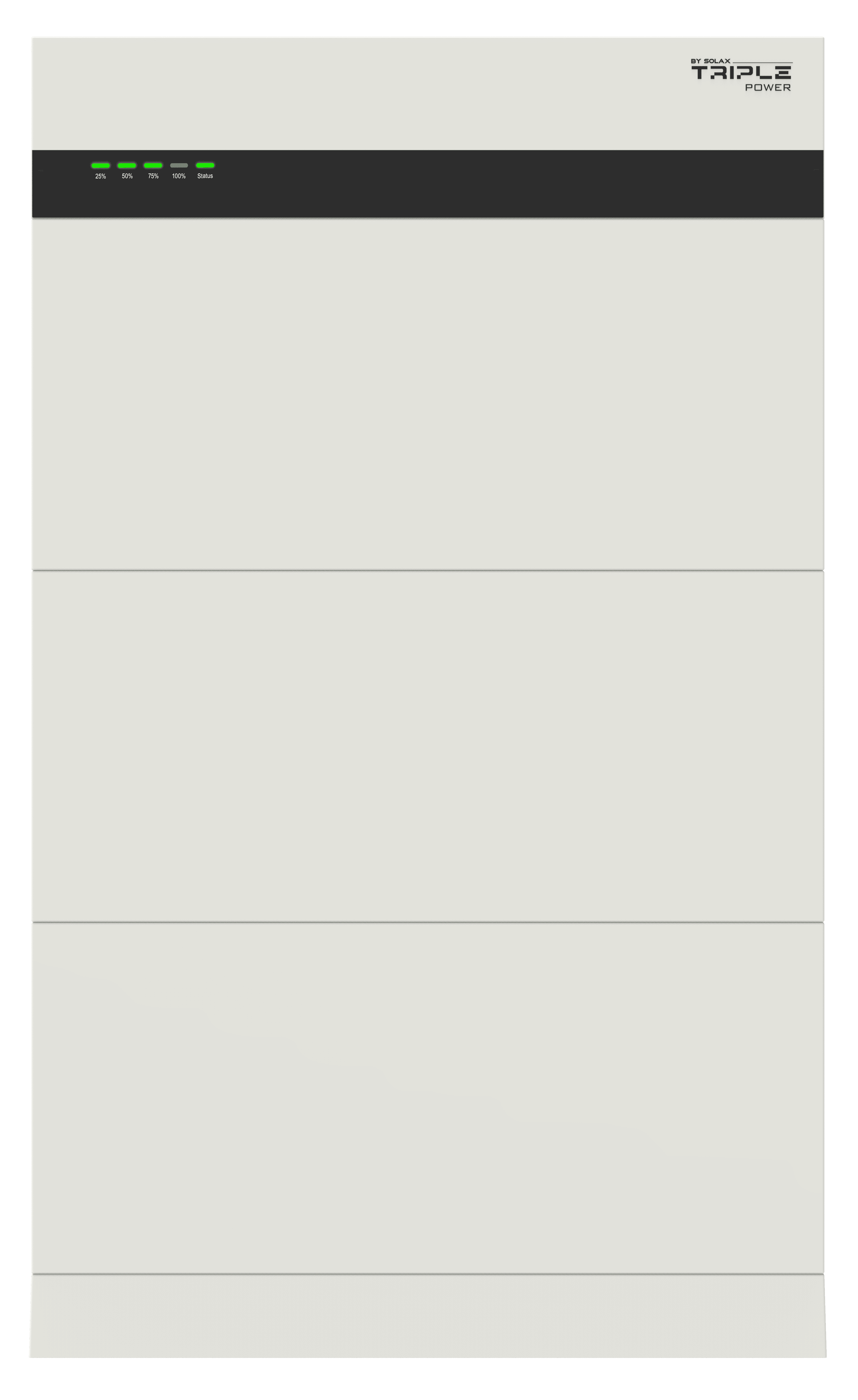

HS50E

  • 5.1kWh-30.7kWh

The HS50E features a modular design with flexible capacity expansion from 5.1kWh up to 30.7kWh, ideal for evolving energy needs. Lightweight and compact, it supports both wall and floor mounting and is compatible with SolaX single and three-phase inverters, ensuring broad installation adaptability.

Product Advantage

The HS50E supports 50A charge/discharge current and operates in extreme temperatures from -30°C to 53°C. With an IP66 rating, cobalt-free LFP battery, and advanced AI-driven SOC/SOH algorithms, it delivers long-lasting energy storage with smart management and OTA upgrades.

Contact Us

Smart Management

  • AI-driven real-time monitoring and battery fault diagnosis

  • Continuous OTA one-click upgrade


High Performance

  • Max. 50A charge/discharge current -30°C to 53°C operational range with advanced heating technology

  • Higher SOC/SOH accuracy through AI battery model algorithms

  • Automotive-grade cell sampling chips for superior stability and safety


Assured Reliability

  • Certified IP66 for outstanding protection

  • Cobalt-free LFP battery: safe, long-lasting, efficient, high energy density

  • A robust cycle life of over 6,000 times, ensuring longevity and reliability


Flexible Adaptability

  • Modular design, flexible expansion

  • Start with 5.12kWh, expand up to 92.16kWh


Product Parameters

  • T-BAT HS 5
  • T-BAT HS 10
  • T-BAT HS 15
  • T-BAT HS 20
  • T-BAT HS 25
  • T-BAT HS 30
  • T-BAT HS 5
    • SYSTEM SPECIFICATION
      Number of modules1 Module
      Norminal capacity [kWh]5.1
      Nominal voltage [V]102.4
      Standard power [kW]

      3

      Max. charge/discharge current (A)50
      Dimensions (W × H × D)730 × 558 × 150 mm


    • GENERAL
      BMS Dimensions (W × H × D)730 × 165 × 150 mm
      BMS Weight [kg]9.7
      Battery typeLi-ion (LFP)
      Battery module [kWh]5.1
      Battery module Dimensions (W × H × D)730 × 318 × 150 mm
      Battery module weight [kg]47


    • ENVIRONMENTAL REQUIREMENTS
      EnvironmentOutdoor / Indoor (*Please refer to the user manual for installation condition)
      Protection degreeIP66


  • T-BAT HS 10
    • SYSTEM SPECIFICATION
      Number of modules2 Module
      Norminal capacity [kWh]10.2
      Nominal voltage [V]204.8
      Standard power [kW]

      6.1

      Max. charge/discharge current (A)50
      Dimensions (W × H × D)730 × 876 × 150 mm


    • GENERAL
      BMS Dimensions (W × H × D)730 × 165 × 150 mm
      BMS Weight [kg]9.7
      Battery typeLi-ion (LFP)
      Battery module [kWh]5.1
      Battery module Dimensions (W × H × D)730 × 318 × 150 mm
      Battery module weight [kg]47


    • ENVIRONMENTAL REQUIREMENTS
      EnvironmentOutdoor / Indoor (*Please refer to the user manual for installation condition)
      Protection degreeIP66


  • T-BAT HS 15
    • SYSTEM SPECIFICATION
      Number of modules3 Module
      Norminal capacity [kWh]15.3
      Nominal voltage [V]307.2
      Standard power [kW]

      9.2

      Max. charge/discharge current (A)50
      Dimensions (W × H × D)730*150*1194


    • GENERAL
      BMS Dimensions (W × H × D)730 × 165 × 150 mm
      BMS Weight [kg]9.7
      Battery typeLi-ion (LFP)
      Battery module [kWh]5.1
      Battery module Dimensions (W × H × D)730 × 318 × 150 mm
      Battery module weight [kg]47


    • ENVIRONMENTAL REQUIREMENTS
      EnvironmentOutdoor / Indoor (*Please refer to the user manual for installation condition)
      Protection degreeIP66


  • T-BAT HS 20
    • SYSTEM SPECIFICATION
      Number of modules4 Modules
      Norminal capacity [kWh]20.4
      Nominal voltage [V]409.6
      Standard power [kW]

      12.2

      Max. charge/discharge current (A)50
      Dimensions (W × H × D)

      730 × 1194 × 150 + 730 × 491× 150 mm


    • GENERAL
      BMS Dimensions (W × H × D)730 × 165 × 150 mm
      BMS Weight [kg]9.7
      Battery typeLi-ion (LFP)
      Battery module [kWh]5.1
      Battery module Dimensions (W × H × D)730 × 318 × 150 mm
      Battery module weight [kg]47


    • ENVIRONMENTAL REQUIREMENTS
      EnvironmentOutdoor / Indoor (*Please refer to the user manual for installation condition)
      Protection degreeIP66


  • T-BAT HS 25
    • SYSTEM SPECIFICATION
      Number of modules5 Modules
      Norminal capacity [kWh]25.6
      Nominal voltage [V]512
      Standard power [kW]

      15.3

      Max. charge/discharge current (A)50
      Dimensions (W × H × D)

      730 × 1194 × 150 + 730 × 809 × 150 mm


    • GENERAL
      BMS Dimensions (W × H × D)730 × 165 × 150 mm
      BMS Weight [kg]9.7
      Battery typeLi-ion (LFP)
      Battery module [kWh]5.1
      Battery module Dimensions (W × H × D)730 × 318 × 150 mm
      Battery module weight [kg]47


    • ENVIRONMENTAL REQUIREMENTS
      EnvironmentOutdoor / Indoor (*Please refer to the user manual for installation condition)
      Protection degreeIP66


  • T-BAT HS 30
    • SYSTEM SPECIFICATION
      Number of modules6 Modules
      Norminal capacity [kWh]30.7
      Nominal voltage [V]614.4
      Standard power [kW]

      18.4

      Max. charge/discharge current (A)50
      Dimensions (W × H × D)

      730 × 1194 × 150 + 730 × 1127 × 150 mm


    • GENERAL
      BMS Dimensions (W × H × D)730 × 165 × 150 mm
      BMS Weight [kg]9.7
      Battery typeLi-ion (LFP)
      Battery module [kWh]5.1
      Battery module Dimensions (W × H × D)730 × 318 × 150 mm
      Battery module weight [kg]47


    • ENVIRONMENTAL REQUIREMENTS
      EnvironmentOutdoor / Indoor (*Please refer to the user manual for installation condition)
      Protection degreeIP66
