C&I ESS

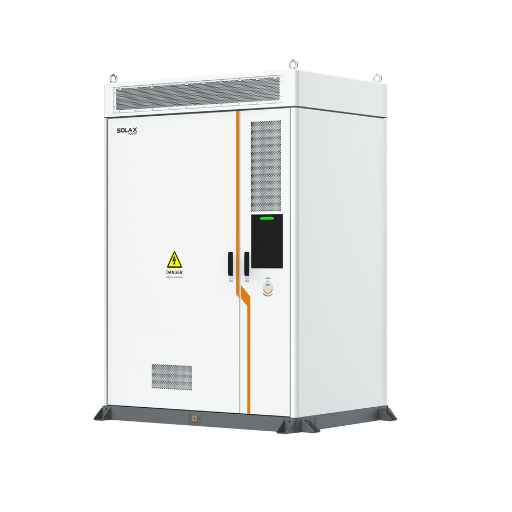

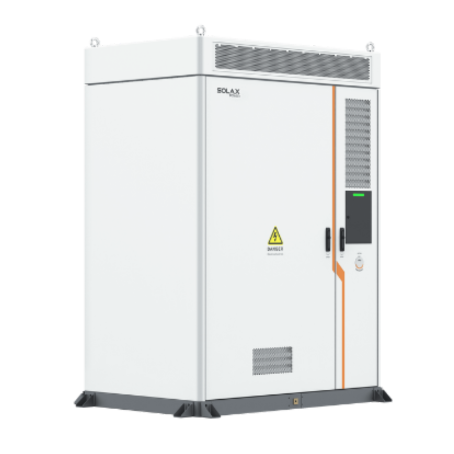

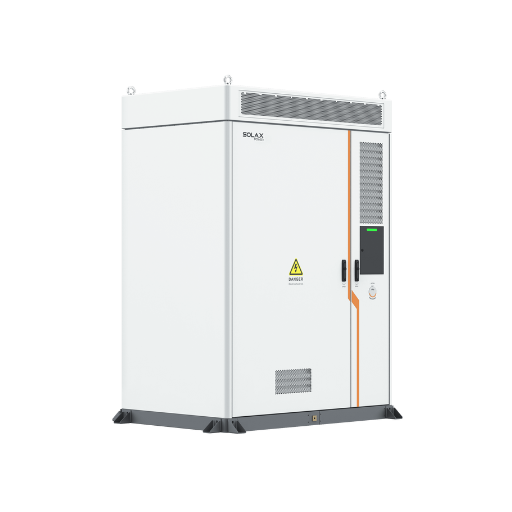

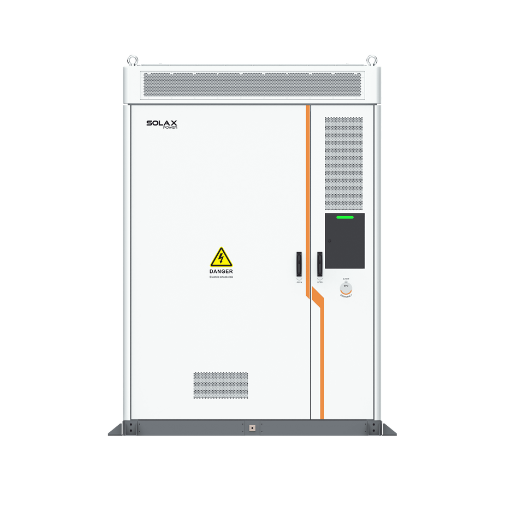

ESS-TRENE 215kWh

  • 100kW/ 215kWh | Air Cooling ESS System

The air cooling ESS system featuring a 100kW power output and 215kWh capacity, engineered for space-conscious installations. Scalable to megawatt-hours, the system integrates seamlessly into both grid-connected and off-grid infrastructures, offering flexible deployment and optimized energy storage in a modular design.

Product Advantage

Equipped with a full-stack in-house developed BMS, EMS, and PCS, it offers seamless integration and one year of historical data storage. With scalable architecture and support for three-phase unbalance output, the system meets complex energy demands with consistency, reliability, and future-ready design.

Contact Us

Assured Reliability

  • Four-level fire safety protection

  • IP66 for inverter, lP55 for cabinet

  • LiFePO4 battery cell & high-performance processors

  • Type ll SPD on AC side

  • Advanced fault detection and response

  • Support three-phase unbalance output




High Performance

  • High power density, compact design

  • Scalable up to megawatt-hours

  • Optimised space utilisation


Smart Management

  • Advanced energy management system

  • VPP ready with SolaX Cloud (2030.5, OpenADR)

  • Support micro-grids and diverse scenarios

  • Smart Schedule, Smart Scene and 7×24h TOU

  • Wireless meter compatibility



Flexible Adaptability

  • Supporting grid-connected and off-grid (with SolaX  switching cabinet)

  • Full-stack self-developed BMS, EMS, PCS & SolaXCloud

  • One year of historical data storage

Product Parameters

  • TRENE-P100B215
  • TRENE-P100B215
    • AC SIDE (ON-GRID)
      Rated output power100 kW
      Rated AC voltage3 / N / PE, 220 / 380 V          3 / N / PE, 230 / 400 V
      Rated AC frequency50 Hz / 60Hz


    • DC SIDE
      Battery typeLFP / 280Ah
      Battery capacity215 kWh
      Rated battery voltage768 V


    • SYSTEM PARAMETER
      Dimensions (W x H x D）1680 ×2420 × 1200 mm
      Net weight2800 kg
      Operating temperature range-30 ~ 50 ℃(＞45℃ derating)
      Max. operating altitude3000 m
      Cooling conceptSmart air cooling
      Ingress protectionIP55
