Residential ESS

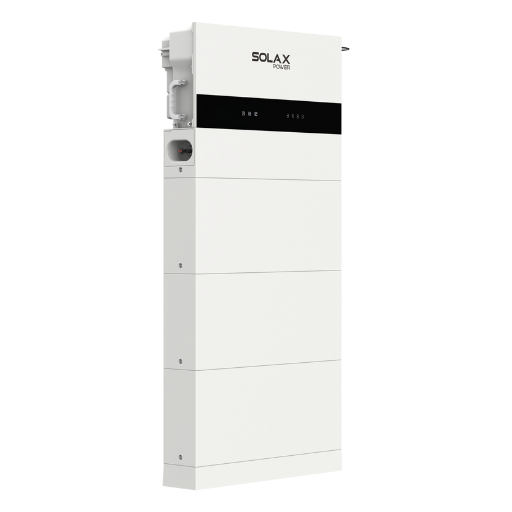

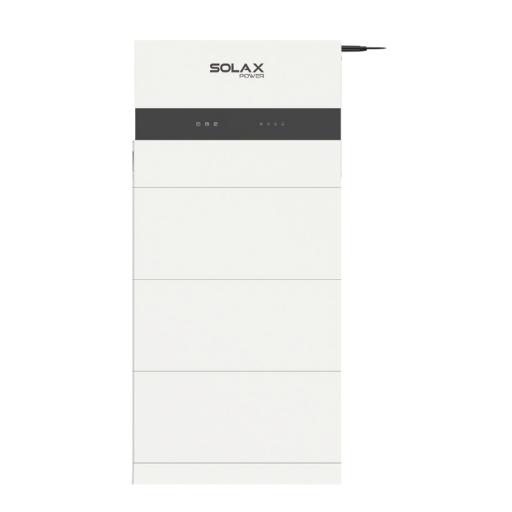

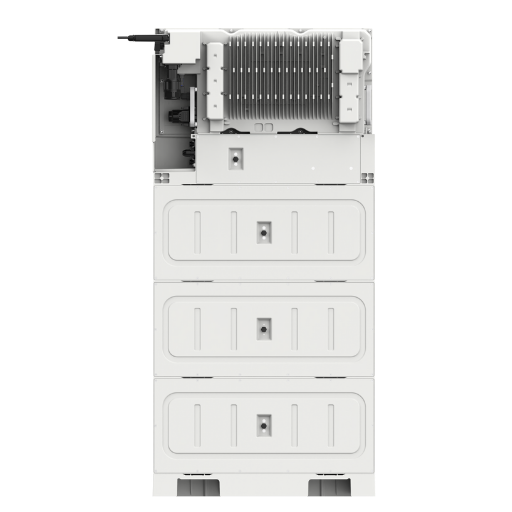

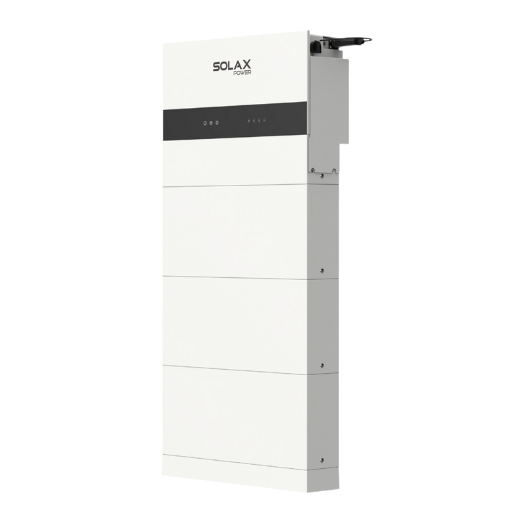

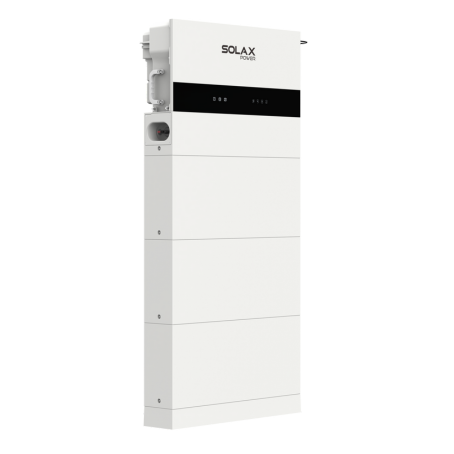

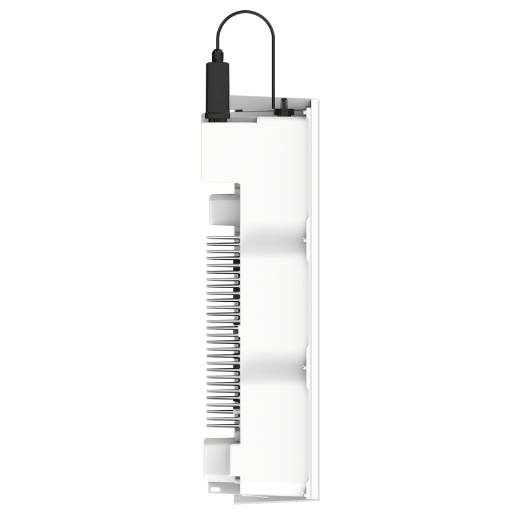

X3-IES-A

5K / 10K / 15K

The SolaX X3-IES-A is a three-phase residential ESS with 98.6% peak efficiency and 15kW output, supporting on/off-grid flexibility. Its multi-layer protection system (AFCI+DC arc detection) and IP66 enclosure ensure safety, while SolaX Cloud enables AI-powered energy optimization. The modular battery (10-60kWh) adapts to diverse household demands.

Watch Video
Data Download

The X1-IES-A supports high charge/discharge currents up to 50A and allows 200% PV input oversizing, maximizing solar energy utilization. It also delivers up to 200% EPS output for 10 seconds, ensuring critical load support during power interruptions.

All In One Design

Plug and play, expandable and installation easily
Light weighted, sleek and aesthetically pleasing
Battery heating technology, -30'C extremeenvironment operation

Safe and Reliable

lP66 protection level
AC SPD type ll, always guarding the inverter
AFCl optional

Intelligent

Al ready, forecasting solar generation and homeconsumption, smart energy management strategy
VPP ready, SolaX cloud support resource aggregator(IEEE2030.5.OpenADR)

Economically Efficient

Support intelligent loads management(e.g.Heatpump, EV charger), combining with 7x24h ToU toachieve efficient peak shaving
Support Wireless meter solution, DataHub1000 required

Product Parameters

X3-IES-15K-A
X3-IES-10K-A
X3-IES-5K-A

X3-IES-15K-A
- INPUT AC

  Nominal AC power [VA]
  15000
  Max. AC current [A]
  24
- OUTPUT AC (On-Grid)

  Rated grid voltage(AC voltage range) [V]
  3P4W, 380 / 400
  Rated AC output current [A] 21.8
- BATTERY

  Battery voltage range [V]
  160-800
  Battery module
  TP-HS50E
  Battery type
  Li-ion (LFP)
- GENERAL DATA (INVERTER)

  Dimensions (W x H x D) [mm]
  717 × 405 × 209.5
  Protection class
  IP66
X3-IES-10K-A
- INPUT AC

  Nominal AC power [VA]
  10000
  Max. AC current [A]
  14.5
- OUTPUT AC (On-Grid)

  Rated grid voltage(AC voltage range) [V]
  3P4W, 380 / 400
  Rated AC output current [A] 14.5
- BATTERY

  Battery voltage range [V]
  160-800
  Battery module
  TP-HS50E
  Battery type
  Li-ion (LFP)
- GENERAL DATA (INVERTER)

  Dimensions (W x H x D) [mm]
  717 × 405 × 209.5
  Protection class
  IP66
X3-IES-5K-A
- INPUT AC

  Nominal AC power [VA]
  5000
  Max. AC current [A]
  8
- OUTPUT AC (On-Grid)

  Rated grid voltage(AC voltage range) [V]
  3P4W, 380 / 400
  Rated AC output current [A] 7.3
- BATTERY

  Battery voltage range [V]
  160-800
  Battery module
  TP-HS50E
  Battery type
  Li-ion (LFP)
- GENERAL DATA (INVERTER)

  Dimensions (W x H x D) [mm]
  717 × 405 × 209.5
  Protection class
  IP66
