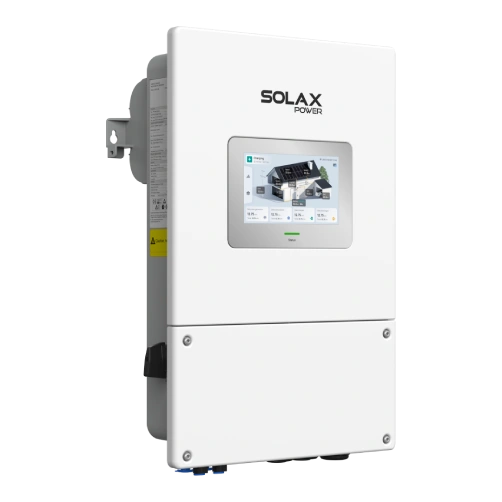

Hybrid Inverter

LVE

  • 3kW / 3.6kW / 5kW / 6kW

The user-friendly 7-inch LCD touchscreen supports multiple languages for effortless setup and monitoring. Smart load and generator support, compatibility with multiple third-party batteries, and parallel operation of up to 6 units make it easy to tailor the system to different home energy needs.

Product Advantage

Built for dependable performance in demanding conditions, the inverter supports 200% PV input power and 200% oversizing for greater solar utilization.Support plus super-backup without a battery guarantee reliable power even in off-grid situations.

Contact Us

Smart Management

  • User-friendly 7-inch LCD touch screen with multi-language supported

  • Smart Load & Generator Support


Assured Reliability

  • IP66 ingress protection

  • Type II SPD on AC & DC side

  • AFCI protection optional

  • Super-backup without battery in off-grid situation


High Performance

  • 200% oversizing and 200% PV input power

  • Low start-up voltage & Global MPP Scan for higher energy harvest

  • Single unit UPS-level switchover time 0ms

  • Whisper-quiet operation as low as 30 dB at night (Performance data is based on tested conditions. Actual results may vary depending on operating conditions)


Flexible Adaptability

  • Max. 6 pcs parallel for on-grid and off-grid

  • Compatible with multiple third-party batteries


Product Parameters

  • LVE3S-S2
  • LVE3.6S-S2
  • LVE5S-S2
  • LVE6S-S2
  • LVE3S-S2
    • PV INPUT
      Max. recommended PV array power6000 Wp
      Operating voltage range60 ~ 480 d.c. V
      No. of MPP trackers / strings per MPP tracker1 / 1
      Max. input current per MPPT20 d.c. A


    • AC INPUT & OUTPUT(ON-GRID)
      Rated output apparent power3000 VA
      Rated AC voltage220 / 230 / 240 a.c. V


    • EPS (OFF-GRID) OUTPUT (WITH BATTERY)
      Rated EPS apparent power3000 VA
      Rated EPS output voltage, frequency230 a.c. V, 50 / 60Hz


    • GENERAL
      Ingress protectionIP66
      Dimensions (W × H × D)378 × 570 × 200 mm
      Net weight14.5 kg


  • LVE3.6S-S2
    • PV INPUT
      Max. recommended PV array power7200 Wp
      Operating voltage range60 ~ 480 d.c. V
      No. of MPP trackers / strings per MPP tracker1 / 1
      Max. input current per MPPT20 d.c. A


    • AC INPUT & OUTPUT(ON-GRID)
      Rated output apparent power3680 VA
      Rated AC voltage220 / 230 / 240 a.c. V


    • EPS (OFF-GRID) OUTPUT (WITH BATTERY)
      Rated EPS apparent power3680 VA
      Rated EPS output voltage, frequency230 a.c. V, 50 / 60Hz


    • GENERAL
      Ingress protectionIP66
      Dimensions (W × H × D)378 × 570 × 200 mm
      Net weight14.5 kg


  • LVE5S-S2
    • PV INPUT
      Max. recommended PV array power10000 Wp
      Operating voltage range60 ~ 480 d.c. V
      No. of MPP trackers / strings per MPP tracker2 (1 / 1)
      Max. input current per MPPT20 / 20 d.c. A


    • AC INPUT & OUTPUT(ON-GRID)
      Rated output apparent power5000 VA
      Rated AC voltage220 / 230 / 240 a.c. V


    • EPS (OFF-GRID) OUTPUT (WITH BATTERY)
      Rated EPS apparent power5000 VA
      Rated EPS output voltage, frequency230 a.c. V, 50 / 60Hz


    • GENERAL
      Ingress protectionIP66
      Dimensions (W × H × D)378 × 570 × 200 mm
      Net weight14.5 kg


  • LVE6S-S2
    • PV INPUT
      Max. recommended PV array power12000 Wp
      Operating voltage range60 ~ 480 d.c. V
      No. of MPP trackers / strings per MPP tracker2 (1 / 1)
      Max. input current per MPPT20 / 20 d.c. A


    • AC INPUT & OUTPUT(ON-GRID)
      Rated output apparent power6000 VA
      Rated AC voltage220 / 230 / 240 a.c. V


    • EPS (OFF-GRID) OUTPUT (WITH BATTERY)
      Rated EPS apparent power6000 VA
      Rated EPS output voltage, frequency230 a.c. V, 50 / 60Hz


    • GENERAL
      Ingress protectionIP66
      Dimensions (W × H × D)378 × 570 × 200 mm
      Net weight14.5 kg
